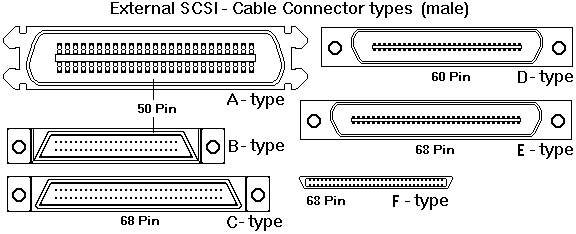

SCSI External Cables / Terminator & Converter
SCSI Adapter-to-Device Cables
| Conn. Adapt | Conn. Dev. | Length meters / ft. |
FRU P/N | Opt. P/N | Remark |
|---|---|---|---|---|---|
| D | A | 1.5 5 | 34F0017 | 32G4143 | |
| H | C | 0.2 0.6 | 55H8190 | RAID-Adapter -> SCSI Break-Out | |
| H | C | 0.4 1.2 | 76H2678 | 76H2675 | RAID-Adapter -> SCSI Break-Out |
| D | A | 1.5 5 | 31F4221 | 31F4187 | |
| E | A | 1.5 5 | 92F0321 | 32G3915 | |
| E | A | 1.5 5 | 71G2590 | 32G3099 | |
| E | A | 1.5 5 | 92F2559 | ||
| E | C | 1.5 5 | 92F0326 | 32G3913 | |
| E | C | 1.0 3 | 06H3231 | PRADC1M | |
| B | A | 1.5 5 | 32G4089 | PCSC01Y | |
| B | A | 1.5 5 | 32G0397 | 8191286 | |
| C | A | 1.0 3 | 70G9858 | 70G9858 SS2C01Y |
Cable with active 8-bit (high- -bit) termination. (06H6037) |
| C | A | 1.5 5 | SSSPC1Y | ||
| C | C | 1.5 5 | 70G9857 | 70G9857 SS2C02Y |
|
| C | C | 1.5 5 | 21F9046 |
SCSI Device-to-Device Cables
| Conn. Dev. | Conn. Dev. | Length meters / ft. |
FRU P/N | Opt. P/N |
|---|---|---|---|---|
| A | A | 1.5 5 | 34F0018 | 6451042 |
| A | A | 0.5 1.5 | 92F0325 | 32G3917 |
| A | A | 0.5 1.5 | 31F4222 | 31F4186 |
| C | A | 0.5 1.5 | 92F0442 | 32G3916 |
| C | C | 0.5 1.5 | 92F0441 | 32G3914 |
SCSI Terminators
| Conn. | Remark | FRU P/N | Opt. P/N |
|---|---|---|---|
| D | for PS/2 Adapter w/Cache (85F0063) | 33F8464 15F6743 | 6451039 |
| Int. | for 85F0063 (Card w/o int.cable) | 34F0025 33F8724 | |
| Int. | for HD w/o terminators (Cable <term> HD) | 92F0142 | |
| Int. | for 85F0002 (DIL) | 57F2870 | |
| A | Active Term. | 92F0057 | 32G3919 |
| C | Active int.& ext. 68-pin |
92F0432 | 32G3918 |
| Int. Int. |
SCSI Terminator Kit active 50-pin 8-bit Note 1 active 68-pin 16-bit |
61G2448 92F0322 |
94G7587 |
Note 1: dataMate DM550-06-ADR
http://www.methode.com/datamate/dmhome.htm
SCSI Converters
| Conn. | Remark | FRU P/N | Opt. P/N |
|---|---|---|---|
| Int. | 68-to-50-pin 16-8 bit (w/o term.) |
92F0324 | 32G3925 |
| Int. | 68-pin device to 50-pin int. cable w/o termination (16-bit device on 8-bit/50-pin cable) |
87G4587 | 01K1326 |
System / Adapter - SCSI Connectors
| System / Adapter | Conn. |
|---|---|
| 3516 Expansion | C |
| 3517 Multi Storage Enclosure | C |
| 3545 ThinkPad Expansion | D |
| 6015 6040 6042 | B |
| 65xx 68xx | B |
| 8556 8557 8580 8590 8595 | D |
| 8639-Server 310 | B |
| 8639-Server 325 | C |
| 8640-Server 300 Exx | B |
| 8640-Server 330 Pxx | C |
| 8640-Server 320 PCI/ISA | C |
| 8640-Server 320 PCI/MCA | C |
| 8640-Server 320 RAID (Mylex) | C |
| 8641-Server 500 MC (IBM) | E |
| 8641-Server 500 RAID MC (IBM) | E |
| 8641-Server 520 PCI (AHA-2940W) | C |
| 8641-Server 520 RAID PCI (Mylex) | C |
| 8642-Server 720 RAID PCI (Mylex) | C |
| 8644-Server NetFinity 3500 | C |
| 8650-Server 704 RAID PCI (Mylex) 2x Channel (0/1) .8mm 68-pin ultra high |
F |
| 9556 9557 9576 9577 | D |
| 9576i 9577i MC (IBM) | E |
| 9576i 9577i MC (Future) | B |
| 9585 Mod. xXx, 1NG, V01 | D |
| 9585 Mod. ONx, Exx | E |
| 9590 MC (IBM) | D |
| 9595 Mod. Axx Sxx MC (IBM) | D |
| SCSI-2 fast PCI Adaptec AHA-2940 | B |
| SCSI-2 fast PCI Future Domain | B |
| SCSI-2 fast/wide PCI Adaptec AHA-2940W | C |
| SCSI-2 fast MC/A Future Domain | B |
| SCSI-2 fast/wide RAID PCI Mylex | C |
| IBM SCSI MC/A | D |
| IBM SCSI-2 fast/wide MC/A | E |
Option - SCSI Connectors
| Option | Conn. |
|---|---|
| 3431 3440 3445 3450 | A |
| 3509 3510 3511 3516 | A |
| 3517 3532 | A |
| 3518 | C |
Most common SCSI Standards - Specifications
| Mode | Bandwith | Frequ. | Max Data Transfer Rate |
Max Cable Length Single- -Ended |
|---|---|---|---|---|
| SCSI-I | 8-bit | 5 MHz | 5 MBps | 6 meters |
| SCSI-II | 8-bit | 5 MHz | 5 MBps | 6 meters |
| Fast SCSI | 8-bit | 10 MHz | 10 MBps | 3 meters |
| Wide SCSI | 16-bit | 5 MHz | 10 MBps | 6 meters |
| Fast/Wide SCSI | 16-bit | 10 MHz | 20 MBps | 3 meters |
| 32-bit SCSI | 32-bit | 5 MHz | 20 MBps | 6 meters |
| 32-bit Fast SCSI | 32-bit | 10 MHz | 40 MBps | 3 meters |
| Fast-20 SCSI | 8-bit | 20 MHz | 20 MBps | 1.5 m |
| Fast-20 Wide SCSI (UltraSCSI) |
16-bit | 20 MHz | 40 MBps | 1.5 m |
NOTE: Fast-20 Wide SCSI is also reffered to as UltraSCSI single ended. The single ended refers to the length of the SCSI cable w/o using differential technology and w/o the use of a SCSI repeater.
With an SCAM (SCSI Configured AutoMagically) Adapter installed, the adapter
use ID #6 during BOOT. All to an SCAM-adapter connected devices should support SCAM - otherwise conflicts.
See Part-Two (fullscreen)
