| Index | FRU P/N |
|---|---|
| 1 Base Frame | |
| (FRU P/N 82G3593) | 06H8028 |
| 2 LED Panel Assembly | 06H8031 |
| Display Panel Support | 10L7054 |
| 3 EISA/PCI-System Board with 512K Cache | 12J4538 |
| without SVGA & SCSI (Models Exx) | |
| (06H2173 06H9989 76H2266 76H5887) | |
| MCA/PCI-System Board with SVGA & SCSI, | |
| without Cache (Models Mxx - 96G1340) | |
| support 75, 90, 100 and 133 MHz | 96G2648 |
| 4 Die Cast Assembly (Models Exx) | 06H9360 |
| 4A Die Cast Assembly (Models Mxx) | 06H9361 |
| 5 Fan Mounting Support | 82G3618 |
| 6 Right Side Door | 82G3594 |
| 7 3-Fan Assembly | 06H3407 |
| 8 Pedestal Wheel with Axle | 82G3609 |
| 9 434W Primary Power Supply Assembly | 06H3596 |
| 10 8-Card Guide | 06H8057 |
| 11 4-Card Guide Support (Models Mxx) | 82G3603 |
| 12 Pedestal | 82G3608 |
| 13 4X CD-ROM Drive | 88G4921 |
| Slim Line CD-ROM Drive (Toshiba) | 06H2150 |
| 14 1.44MB Diskette Drive | 93F2361 |
| 15 2GB Hard Disk Drive (Starfire) | 06H3372 |
| 2GB Hard Disk Drive incl. Hot Swap Tray | |
| (w/o sticking problem) | 06H7360 |
| 4.51GB F/W SCSI-2 Hard Disk Drive | |
| (06H5709) Ultrastar XP / Opt.OSW4GBM | |
| (Opt. P/N 07H0834) Atlas / Opt. O7S4GBM | |
| 06H8562) | 76H0959 |
| 4.51GB F/W SCSI-2 Hot Swap | |
| Opt. P/N S4GHS1Y | xxxxxxx |
| 16 Hot Swap Tray (Wide) w/o Cable | 06H3956 |
| Tray Address-Cable (06H2770) | 06H3957 |
| Tray Data-Cable (06H2772) | 06H6145 |
| DASD Status Cable | 06H5081 |
| Raid Adapter to Backplane Cable | |
| (71G6281) | |
| If CD-ROM errors see -> 4x SCSI CD-ROM | |
| PCI RAID (SCSI-Fast/Wide) Cable | |
| (RAID Adapter to Backplane for 1 drive) | 82G3613 |
| DASD Tray - Hot Swap (Wide) | 06H8631 |
| (16-bit / incl. LED & Switch) | |
| DASD-Tray - Address (8-4-2-1) Cable | 06H7691 |
| Screws, Hot Swap HDD to Carrier (4x) | 1147429 |
| SCSI PCI Option | |
| CD-to-Backplane Cable (non Array) | |
| (replacement version CD-ROM errors) | 06H6876 |
| 17 Front Bezel with Shield | 06H8973 |
| Front Bezel with Shield (4x CD-ROM) | |
| (Model EDx, EEx, MDx) | 07H0209 |
| 18 Keylock with Key | 82G3606 |
| Keylock with Key and Pawl | |
| (Models EDx, EEx, MDx) | 82G3606 |
| 19 DASD Door | 82G3596 |
| DASD Door | |
| (Models EDx, EEx, MDx) | 07H0212 |
| 20 IBM Logo (restricted) | 82G3601 |
| 21 5.25-Inch Hard Disk Drive Bezels | |
| with Spacer | 06H8684 |
| 22 Control Panel Bezel | 06H3595 |
| 23 CD Storage Tray | 06H5060 |
| I/O Panel Die Cast | 06H3593 |
| I/O Flex Plate | 06H3594 |
| I/O Spring | 06H3796 |
| 16/8 Bit SCSI Converter | |
| (68-pin to 50-pin) | 92F0324 |
| 512K Cache (Models Mxx) | 96G2413 |
| 256K Cache (Models Exx) | 06H8510 |
| (for upgrade 256KB to 512KB) | |
| 8MB EOS Memory SIMMs | 11H0619 |
| 16MB EOS Memory SIMMs | |
| (Models EDE, EDL, EZ1, EZS, EZE, EZL, ED0 | |
| EDV, EZ0, EZV) | 11H0634 |
| 16MB EOS Memory SIMMs | |
| (Models Mxx) | 11H0646 |
| 32MB EOS Memory SIMMs | |
| (Models Mxx) | 11H0649 |
| 32MB EOS Memory SIMMs | |
| (Models EEx) | 11H0637 |
| DASD Hot Swap Backplane III Asm. | |
| (Models ED1, EDE, EDL, ED0, EDV, MDE, MDL | |
| MD0, MDV) (06H8629) | 76H2671 |
| DASD Hot Swap Backplane Assembly | |
| (Models EZ1, EZS, EZE, EZL, EZ0, EZV, MZS | |
| MZE, MZL, MZO, MZV) | 06H8388 |
| DASD Mounting Plate | 82G3602 |
| Ethernet PCI Card (1x RJ45) | |
| (Models EDL, EZL, MDL, MZL) (25H4383) | |
| (OPT P/N 86H2432) | 86H2423 |
| Ethernet PCI Card (1x RJ45 + 1xDB15) | |
| (Models EDL, MDL) | 06H8575 |
| Hinges (2 each) | 82G3600 |
| Hot Swap Cam Spring, Shaft & Knob | 06H5059 |
| For Keyboard/Power Cable see > Keyboard/Power Cable | |
| LED/Speaker, Power Switch Cable Asm. | 06H8037 |
| Lock Latch Assembly with Rod | |
| (Models EDx, EEx, MDx) | 07H0195 |
| Memory High Rise Card | |
| (Models MDE, MDL, MD0, MDV) | 96G3692 |
| Memory High Rise Card | |
| (Models MZS, MZE, MZL, MZ0, MZV) | 96G1339 |
| Miscellaneous Parts Kit | 82G3611 |
| C2 Spring | |
| EMI Ground Clips (4 each) | |
| Lock Pawl | |
| Screws (4 each) | |
| System Board Mounting Boss (2 each) | |
| Mouse | 06H4595 |
| P54C 66/100MHz Processor Chip | |
| with Heat Sink | |
| (Models EZ1, EZS, EZE, EZL, EZ0, EZV) | 75H8846 |
| P54C 66/100MHz Processor Chip | |
| with Heat Sink | |
| (Models MZS, MZE, MZL, MZO, MZV) | 96G2415 |
| P54C 66/100MHz Processor Chip | |
| with Heat Sink | 06H6063 |
| P54C 66/133MHz Processor Chip | |
| (Models MDE, MDL, MD0, MDV) | 06H9492 |
| P54C 66/133MHz Processor Chip | |
| with Heat Sink (96G2423) | |
| (Models ED1, EDE, EDL, ED0, EDV) | 07H0570 |
| P54C 166/66MHz Processor Chip | |
| with Heat Sink | |
| (Models EE0, EE1, EEE) | 76H0657 |
| 200MHz Processor Upgrade Option | |
| (Option P/N 94G6496) | 76H4082 |
| Power Supply Adapter Board | 06H8977 |
| PC ServeRAID Adapter | |
| (Models ED1, EDL, EE1, EEE, MDL (06H9334)) | |
| (OPT P/N 70G8489) | 76H6875 |
| SCSI-2 RAID (Mylex) PCI Card (ARRAY Models) | |
| (Models ED1, EDE, EDL) | |
| (OPT P/N 94G2764) | 06H5078 |
| 4 MB Memory SIMM for PCI RAID Adapter | 60G2175 |
| SCSI Fast/Wide Card (Models Exx) | 06H8574 |
| SCSI Fast/Wide Card (Models Exx) | |
| (Adaptec for non Array Models) | 06H6431 |
| Speaker with Bracket | 33F8444 |
| SVGA Card (Models EDx, EE0) | |
| (FRU P/N 71G0031) | 06H9114 |
| SVGA Card (Models EZx) | 71G0031 |
Index Power (PC Server 520 - Type 8641)
EISA Models EZO, EZV, EZL, EZS, EZE
Micro Channel Models MZO, MZV, MZS, MZE, MZL
| FRU P/N | |
|---|---|
| Battery (Models Mxx), | 33F8354 |
| Real-Time Clock with Battery (Models Exx), | |
| see 'Battery Notice' | 06H3398 |
Index Options (PC Server 520 - Type 8641)
EISA Models EZO, EZV, EZL, EZS, EZE
Micro Channel Models MZO, MZV, MZS, MZE, MZL
| FRU P/N | |
|---|---|
| 220W Optional Power Supply Assembly | 06H3237 |
| P54C 66/100MHz Processor Chip | |
| with Heat Sink | 06H6063 |

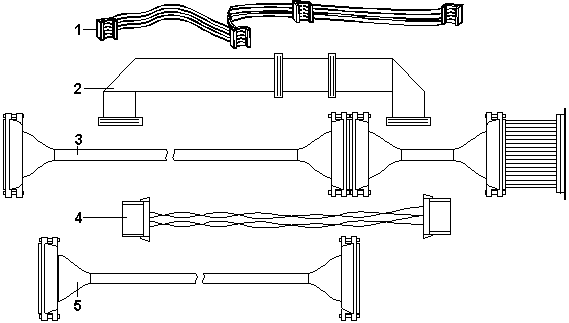

Cables (PC Server 520 - Type 8641)
| FRU P/N | |
|---|---|
| 1 System Status Cable (1X4) | 06H3404 |
| 2 Diskette Drive (3X) Signal Cable | 06H9345 |
| Diskette Drive Power Cable | 06H8982 |
| 3 SCSI-Fast/Wide Cable (1X) | 06H6876 |
| SCSI-Fast/Wide Cable (2X) | 06H3751 |
| SCSI-Fast/Wide Cable (3X) | |
| (Models ED0, EDV, MD0, MDV) | 06H6675 |
| SCSI-Fast/Wide Cable (3X) | |
| (Models ED1, EDE, EDL, MDE, MDL) | 06H6661 |
| If CD-ROM errors see -> 4x SCSI CD-ROM | |
| 4 Hard Disk Drive Power Cable (1X) | 82G3610 |
| 5 SCSI Fast/Wide Flex Cable (1X) | 06H6145 |
| DASD Status Cable | 06H9343 |
| C2 Cable (Models MDE, MDL, MD0, MDV) | 82G3612 |
| C2 Cable (Models MZS, MZE, MZL, MZ0, MZV) | 06H8059 |
| Parallel Data Cable (Models Exx) | 06H2166 |
| POS ID Select Cable (Narrow) | 06H3592 |
| SCSI Fast/Wide ID Select Cable | 06H3957 |
| Serial Data Cable (Models Exx) | 06H2165 |
| SCSI PT-PT Cable 2x | |
| (Models EDx, EEx, MDx) | 06H9312 |
| PWR Good Cable with LED (green) | 06H2633 |
| HDD Activity Cable with LED (amber) | 06H2637 |
| SCSI Activity Cable with LED (amber) | 06H3379 |
