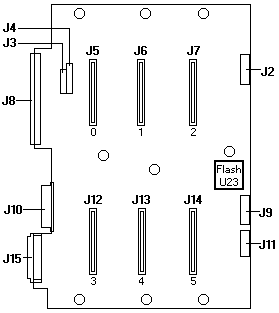

| J2 | LED cable connector for drives 1, 2, 3 |
|---|---|
| J3, J4 | Drive ID and configuration jumper blocks |
| J5 | Wide SCSI bay drive 1 |
| J6 | Wide SCSI bay drive 2 |
| J7 | Wide SCSI bay drive 3 |
| J8 | Narrow SCSI cable, output |
| J9 | LED cable connector for drives 4, 5, 6 |
| J10 | Power and ground from power distribution board and power supply |
| J11 | I²C bus connector |
| J12 | Wide SCSI drive bay 4 |
| J13 | Wide SCSI drive bay 5 |
| J14 | Wide SCSI drive bay 6 |
| J15 | Wide SCSI cable connector, input from channel A or B |
