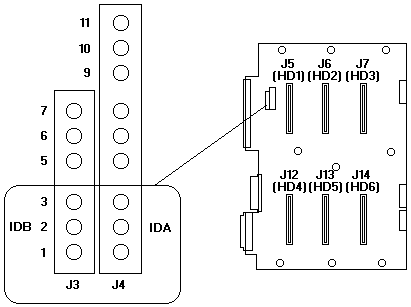

Jumper Pins SCSI ID of Drive
J3, IDA J4, IDB HD HD HD HD HD HD
1 2 3 4 5 6
--------------------------------------------------------------
1-2 1-2 0 1 10 3 4 13
1-2(1) 2-3(1) 0 1 2 3 4 5
2-3 2-3 8 9 2 11 12 5
2-3(2) 1-2(2) 8 9 10 11 12 13
--------------------------------------------------------------
(1) Factory default setting for ARRAY models.
(2) Factory default setting for Non-ARRAY models.

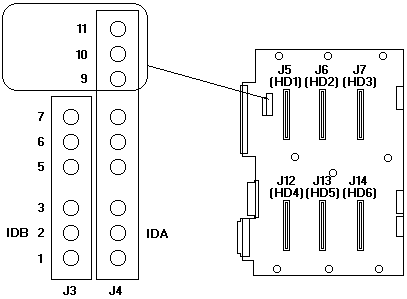

SCSI Flash Update Jumper, J4
| Jumper Pins | Description |
|---|---|
| 10-11 | Reserved |
| 9-10(1) | Normal |
(1) Factory default setting.

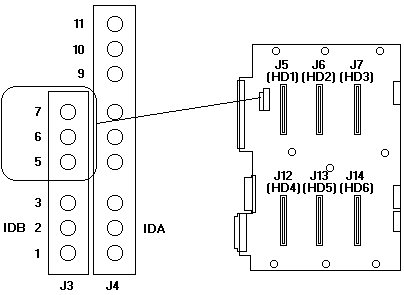

External Backplane Jumper
| Jumper Pins | Description |
|---|---|
| 6-7 | Reserved |
| 5-6(1) | Internal backplane (backplane is installed in the server) |
(1) Factory default setting.

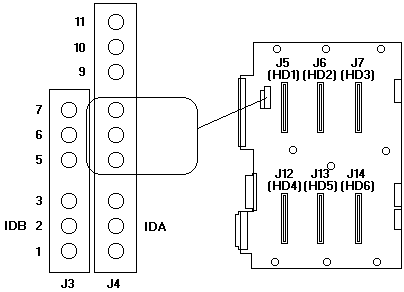

Secondary Jumper, J4
NOTE:
When more than one backplane is installed in the server, the backplane in
the upper position is jumpered as primary and the backplane in the lower
position is jumpered as secondary.
| Jumper Pins | Description |
|---|---|
| 6-7 | Secondary |
| 5-6(1) | Primary |
(1) Factory default setting.
