SCSI / RAID Cable - Connectors
SCSI / RAID Cable - Connectors
| Index | FRU P/N |
|---|---|
| 1 Base Frame (2x CD-ROM) | 82G3593 |
| Base Frame (4x CD-ROM) | 06H8685 |
| 2 Information Display Assembly (LED) | 82G3614 |
| Display Panel Support | 06H7961 |
| 3 System Board (PCI-MC) | 06H1810 |
| without Memory & Processor | |
| See > Jumper J24 PCI bus speed | |
| See > H136842 | |
| See > H166314 | |
| 8MB ECC (x36) Memory SIMM | 06H7760 |
| 16MB ECC Memory SIMM | 06H7761 |
| 32MB ECC Memory SIMM | |
| (Do not use FRU P/N 94G2941) | 06H7762 |
| 4 I/O Panel Die Cast | 06H3573 |
| 5 SCSI Fast/Wide | |
| Adaptec AHA-2940W Adapter (06H8574) | |
| (Models 0D0,0DN,0E1,0EN,0F0,0FR,0Z0) | 06H6431 |
| 6 SCSI-2 Fast/Wide RAID Adapter | |
| (1Z0, 2ZS and 4ZS) OPT P/N (70G9263) | 06H3059 |
| Signal Pass Through Card | |
| (Internal SCSI to external connector) | 06H3060 |
| 7 Fan | 82G3616 |
| 8 Fan Mounting Support (w/o Fans) | 82G3618 |
| 9 I/O Flex Plate | 06H3574 |
| 10 Right Side Door | 82G3594 |
| Right Side Door Hinges (with Screws) | 82G3600 |
| 11 Pedestal Wheel (with Axle) | 82G3609 |
| 12 470-Watt Power Supply Asm. | 06H3589 |
| 13 Processor Card Support | 06H8683 |
| 14 PCI Bridge Card (71G0694) | |
| See Important | 76H7134 |
| 15 512MB Memory Card | 71G0696 |
| 16 P54C-100/66MHz Processor Card | |
| (71G0692) | 76H6852 |
| P54C-133MHz Processor Card | |
| (Model 0DN) | 75H9688 |
| P54C-133MHz Processor Card | |
| (Model 0D0, 2DS) | 75H9686 |
| P54C-166MHz Processor Card | |
| (Model 0EN, 0E1, 2E1) (75H9690) | |
| (all six jumpers are default set to NORM | |
| right side - outer position) | 76H3545 |
| P54C-200MHz Processor Card | |
| (Option P/N 94G5352) | 76H7147 |
| SMP 200MHz Processor Upgrade Opt-II | |
| (Any combination 100-200MHz | |
| up to 6 proc./syst. possible. | |
| OPT P/N 94G5352 - MFG P/N 76H22571 | 76H2572 |
| 17 3-Cards Guide Support | 06H8524 |
| 4-Cards Guide Support | 06H8523 |
| 18 Card Guide | 82G3604 |
| Adjustable Card Guide Arm | 06H8525 |
| 19 Pedestal | 82G3608 |
| 20 Slim-Line CD-ROM Drive (2x) | 06H2150 |
| CD-ROM Drive (4x) | 88G4921 |
| 21 2.88MB Diskette Drive | 82G1888 |
| 22 Hot Swap Tray (Wide) w/o Cable | 06H3956 |
| Tray SCSI-Fast/Wide Cable Flex | 06H6145 |
| Tray Address Cable (06H2770) | 06H3957 |
| DASD Hot-Swap Backplane Ass. (71G8388) | 06H8388 |
| DASD Hot-Swap Cam Spring | |
| (Shaft and Knob) | 06H5059 |
| DASD Mounting Plate | 82G3602 |
| DASD Tray - Hot Swap (Wide) | 06H8631 |
| (16-bit / incl. LED & Switch) | |
| DASD-Tray - Address (8-4-2-1) Cable | 06H7691 |
| Screws, Hot Swap HDD to Carrier (4x) | 1147429 |
| PCI - ServeRAID Adapter | |
| (OPT P/N 70G8489) (06H9334) | 76H6875 |
| 23 2GB SCSI Hard Disk Drive | |
| (2DS, 2E1, 2ZS and 4ZS) | 06H3372 |
| 2GB Hard Disk Drive incl. Hot Swap Tray | |
| (w/o sticking problem) | 06H7360 |
| 4.51GB F/W SCSI-2 Hard Disk Drive | |
| (06H5709) Ultrastar XP / Opt.OSW4GBM | |
| (Opt. P/N 07H0834) Atlas / Opt. O7S4GBM | |
| 06H8562) | 76H0959 |
| 4.51GB F/W SCSI-2 Hot Swap | |
| Opt. P/N S4GHS1Y | xxxxxxx |
| 24 Front Bezel | |
| (with Shield 2x CD-ROM) | 06H7874 |
| Front Bezel | |
| (with Shield 4x CD-ROM) | 06H8686 |
| 25 Keylock (with Keys) | 82G3606 |
| 26 DASD Door | 82G3596 |
| 27 IBM Logo (R) | 82G3601 |
| 28 5.25-Inch Drive Bezel | |
| (with Spacer) 2x CD-ROM | 82G3599 |
| 5.25-Inch Drive Bezel | |
| (with Spacer) 4x CD-ROM | 06H8684 |
| 29 Control Panel Bezel | 82G3607 |
| 30 Control Panel Card Asm. | 06H7097 |
| Speaker (with Bracket) | 33F8444 |
| Rubber Dome Switch Pad | 06H7873 |
| 31 CD Storage Tray | 06H5060 |
| Keyboard U.S (with Cable) | 71G4646 |
| See > International Keyboards | |
| Mouse | 06H4595 |
| Power Cord | 62X1045 |
| Real Time Clock (with Battery) | |
| (see 'Battery Notice') | 82G3620 |
| Miscellaneous Parts Kit | 82G3611 |
| ° C2 Spring (1) | |
| ° EMI Ground Clips (4) | |
| ° EMI Ground Springs (4) | |
| ° Lock Pawl (1) | |
| ° System Board Mounting Clips (2) | |
| ° Screws (4) | |
| ° Side Cover Foam Gasket (1) |

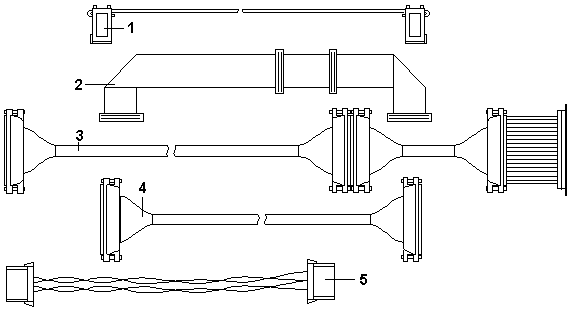

Cables (Type 8642)
| Index | FRU P/N |
|---|---|
| 1 System Status Cable (1x4) | 82G3617 |
| 2 Diskette Drive (3x) | |
| (Signal Cable with power) | 06H3405 |
| 3 SCSI-Fast/Wide Cable (3 drives) | |
| (1Z0, 2ZS and 4ZS) | 06H6661 |
| If CD-ROM errors see -> 4x SCSI CD-ROM | |
| SCSI-Fast/Wide Cable (3 drives) | |
| (OZO only) | 06H6675 |
| If CD-ROM errors see -> 4x SCSI CD-ROM | |
| 4 Hard Disk Drive Power Cable | |
| (for 1 drive) | 82G3610 |
| SCSI-Fast/Wide ID Select Cable | 06H3957 |
| SCSI-Fast/Wide Cable Flex (for 1 drive) | 06H6145 |
| C2 Cable (with Switch) | 82G3612 |
| Fan Cable Assembly | 06H7870 |
| Information Display Cable (2x13) | 06H8679 |
| Dual Serial Cable Assembly | 06H7868 |
| SCSI Fast/Wide Cable | |
| (e.g. AHA-2940-F/W to Tape Autoloader) | 06H6440 |
| 5 SCSI PCI Option | |
| CD-to-Backplane Cable (non Array) | |
| (replacement version CD-ROM errors) | 06H6876 |
Options (Type 8642)
| FRU P/N | |
|---|---|
| 4mm DAT Autoloader | |
| (24/48 MB Auto Tapeloader) | 06H7541 |
| IPB Bridge Card | 75H9149 |
| 220-Watt Power Supply Assembly | 06H3237 |
| C2 Cable Cover | 71G6290 |
| Cable Cover Thumbscrew | 61G3842 |
| DASD Hot-Swap Tray Assembly (Narrow) | 71G6292 |
| P54C-100/66MHz Processor Card | |
| (71G0692) | 76H6852 |
| EtherNet PeerMaster Quad-BT Adapter | |
| (with coax cable connector) | 06H4220 |
| EtherNet PeerMaster Quad-B2 Adapter | |
| (with twisted-pair cable connector) | 06H6042 |
