IBM-AUSTRIA - PC-HW-Support    30 Aug 1999

LCD Unit (TP 570 - 2644)

•  Battery pack
•  Hard Disk Drive
•  Keyboard
•  Center Cover
•  Frame and Power Switch

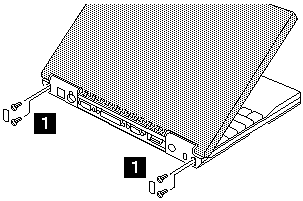

Step	Screw (Quantity)	Color	Torque
1	M2.5 x 4.8mm (4)	Black	4 kgcm

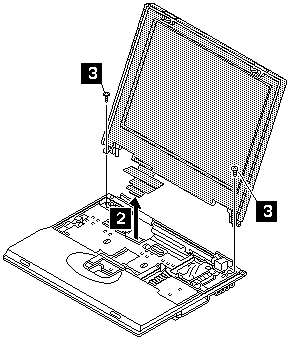

Step	Screw (Quantity)	Color	Torque
3	M2.5 x 4.8mm (2)	Black	4 kgcm
