IBM-AUSTRIA - PC-HW-Support 30 Aug 1999 |
2040 Keyboard and Information Panel (765D-9546 765L-9547)
2040 Keyboard and Information Panel

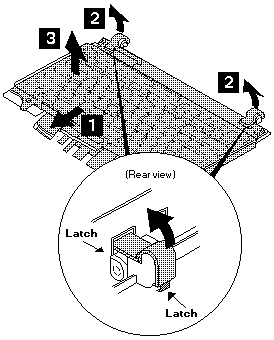

NOTE: When pulling the lever off the foot 1,
separate the lower part of the lever from the foot by inserting a pointed
device through the hole in the foot.

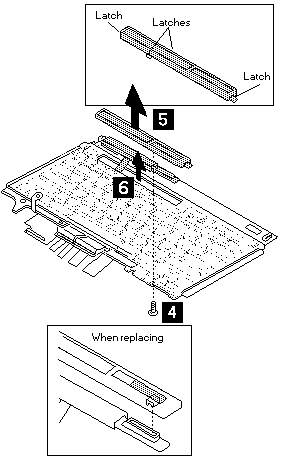

| Step |
Size (quantity) |
Memo (torque) |
| 4 |
M2.5x4 mm (1) |
(3kgcm) |
NOTE: Do not reuse (see Screw Kit - FRU P/N) a screw you removed. Use a new screw and
tighten the screw to the torque specification shown.
