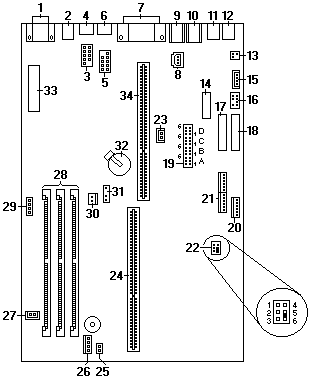

(6588) 6888 - Pentium® II 266/300 MHz System Board


NOTE: This system board and jumper settings are the same as the PC 300-Type 6588

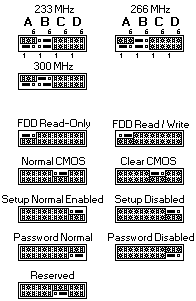

(6588) Intellistation Type 6888 - Pentium® II 266/300 MHz Jumper Settings


BOOT Block Recovery Jumper (see Sys-Board pos.No 22)

Jumper Setting Description
Boot Block
Recovery		 5-6 (D)
4-5		 Normal
Recover

See Part-Two (fullscreen)
