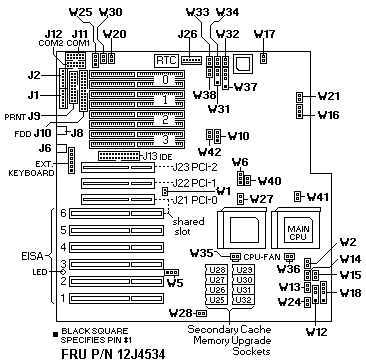

System Board Locations (EISA/PCI)



System Board Locations (EISA/PCI)

NOTE: A black (square) indicates pin 1.


See Part-Two (fullscreen)
