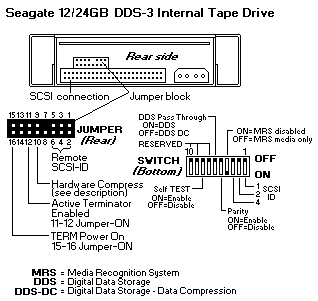

Important ! Some functions are duplicated by
both, the JUMPER and DIP-Switches. One or the other should be used per function. DO NOT set both
locations to the same function. (i.e. If you set dip switch 1 to ON and install a jumper on pins 5-6, the drive
will be set to SCSI ID 5).
SCSI ID selection (Switch or Jumper)
| SCSI-ID | SW-3 | SW-2 | SW-1 |
|---|---|---|---|
| ------- | J5-6 | J3-4 | J1-2 |
| 0 | Off | Off | Off |
| 1 | Off | Off | ON |
| 2 | Off | ON | Off |
| 3 | Off | ON | ON |
| 4 | ON | Off | Off |
| 5 | ON | Off | ON |
| 6 | ON | ON | Off |
| 7 | ON | ON | ON |
DDS-Pass Through Mode - Hardware Compression settings
DDS-Pass Through Mode (hardware compression) is enabled or disabled by either SW-6 or jumpers 9-10.
The default is DDS pass through mode disabled (SW-6 = OFF, jumpers 9-10 = OFF).
If using the DIP switch to set DDS-Pass Trough mode, remove jumper from pin 9-10.
| SW-6 = ON | enable pass through |
|---|---|
| Data Compression disabled. | |
| SW-6 = OFF | disable pass through |
| Data Compression enabled. |
Media Recognition and Parity Checking
Media Recognition System (MRS) setting and Parity configuration must be set using the DIP-switches.
The SW-4 switch enables/disables the MRS-mode. The default is MRS disabled (SW-4 = ON).
If MRS is disabled (SW-4 = ON), the drive read/writes to MRS and non-MRS media.
If MRS is enabled (SW-4 = OFF), the drive will write to MRS media only.
The SW-5 enables/disables parity checking. Default parity is disabled (SW-5 = OFF).
Power Specifications
| DC Voltage | +12 Vdc | + 5 Vdc |
|---|---|---|
| Voltage Tolerance | + or - 10% | + or - 7% |
| Operational Current | 250 mA | 600 mA |
| Standby Current | 50 mA | 550 mA |
| Peak Current | 600 mA | 800 mA |
| Ripple, Peak to Peak | <= 100mV | <= 100mV |
| Standby Power Dissipation | < 3.3 watts | < 2.2 watts |
| Operating Power Dissipation | < 5.5 watts | < 5.5 watts |
Specifications
| Compressed Data | 2.2 MB per second |
|---|---|
| Uncompressed Data | 1.1 MB per second |
Environmental Specifications
| - | Operational | Nonoperational |
|---|---|---|
| Temperature Range | +5°C to +45°C +41°F to +113°F |
-40°C to +65°C -40°F to +149°F |
| Relative Humidity (noncondensing) |
20% to 80% | 0% to 90% |
| Mximum Wet Bulb Temperature |
26°C (78.8°F) | No condensation |
| Altitude | -100m to 4575m -330ft to +15000ft |
-300m to 15200m -985ft to +49900ft |
