System Board (8650)
Description for the ALB1PUTR module

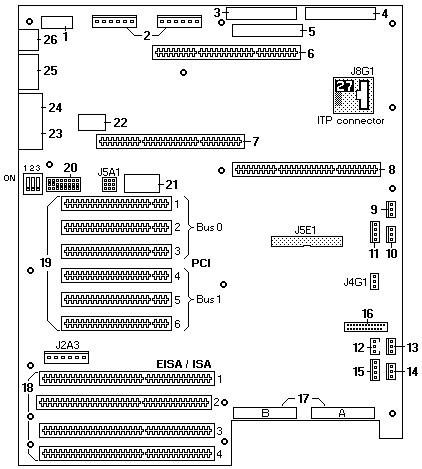

The ALB1PUTR module is intended to be installed on an 704
server System-Board (Position J8G1) ITP Header. The PUTR module (FRU P/N 12J4649) is
required when an upgrade is made to the sB1 stepping of
the Pentium Pro processor. Failure to use the module can result in one or more
installed processors not resetting properly during a power-on reset.
(Error codes 0176, 0177, 0178, 0179)
The module works correctly with all steppings of the Pentium Pro processor that
are supported by the board set.
