| Index | FRU P/N |
|---|---|
| 1 Base Frame (4x CD-ROM) | 06H8685 |
| 2 Information Display Assembly | 82G3614 |
| Display Panel Support | 06H7961 |
| 3 I/O Panel Die Cast | |
| (Additional Micro Channel Blanks) | 06H8657 |
| 4 I/O Flex Plate | 06H8627 |
| 5 Fan Mounting Support | 82G3618 |
| 6 Right Side Door | 82G3594 |
| 7 Fan Assembly | 82G3616 |
| 8 Pedestal Wheel | 82G3609 |
| 9 470 Watt Power Supply | 06H3589 |
| 220 Watt Power Supply Upgrade | 06H3237 |
| 10 System Board (Planar) | 06H8625 |
| 11 Pedestal | 82G3608 |
| 12 DASD Tray - Hot Swap (Wide) | 06H8631 |
| (16-bit / incl. LED & Switch) | |
| DASD-Tray - Address (8-4-2-1) Cable | 06H7691 |
| Screws, Hot Swap HDD to Carrier (4x) | 1147429 |
| DASD Tray - Hot Swap (Narrow) - Optional | 07H0744 |
| (For Option 70G8492) | |
| 13 Hard Disk Drive - Optional | |
| 14 Front Bezel with Shield (4x CD-ROM) | 06H9379 |
| 15 Keylock with Keys | 82G3606 |
| 16 DASD Door | 82G3596 |
| 17 IBM Logo (R) | 82G3601 |
| 18 5.25-inch Blank Bezel (4x CD-ROM) | 06H8684 |
| 19 Diskette Drive Bezel | 06H8670 |
| 20 Rubber Dome Switch Pad | 06H7873 |
| 21 Control Panel Bezel | 82G3607 |
| 22 Control Panel Card Assembly | 75H7652 |
| Backplane Power-Terminator | 03K9283 |
| 4mm DAT Autoloader - Optional | 06H7514 |
| Control Panel Cable Jumper | 06H8663 |
| DASD Mounting Plate | 82G3602 |
| Hinges with Screws | 82G3600 |
| Hot Swap Back Plane Assembly (06H8629) | 76H2671 |
| Hot Swap Cam Spring, Shaft/Knob | 07H0498 |
| Miscellaneous Parts Kit | 82G3611 |
| ° Screws (4x) | |
| ° Lock Pawl (1x) | |
| ° EMI Ground Clip (4x) | |
| ° System Board Mounting Clip (2x) | |
| ° C2 Spring (1x) | |
| Miscellaneous Parts Kit (Backplane) | 07H0745 |
| ° Jumpers (4x) | |
| ° Screws (4x) | |
| ° Standoff (4x) |

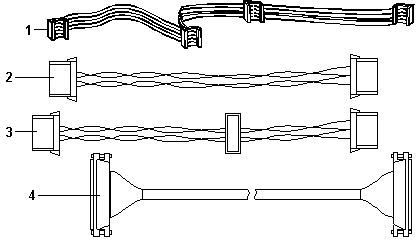

Cables (Type 3518)
| Index | FRU P/N |
|---|---|
| 1 System Status Cable 1x4 | |
| (with 4 connectors) | 82G3617 |
| 2 Hard Disk Drive Power Cable 2x | |
| (with 2 connectors) | 06H8640 |
| 3 Hard Disk Drive Power Cable 2x short | |
| (with 2 connectors) | 06H8641 |
| 4 SCSI-Fast/Wide Cable 1x short | |
| (with 1 connector) (FRU 06H7958) | 06H7957 |
| C2 Cable with Switch | 82G3612 |
| Fan Cable Assembly | 06H7870 |
| Information Display Cable | 06H8679 |
| Hot Swap Back Plane Chaining - Optional | |
| Backplane Daisy Chain Cable 200mm (8.5-Inch) | |
| (Backplane to Backplane cable) | 06H8644 |
| DASD ID Cable - Optional | |
| (for Option No. 96G3055, 94G3057, 94G3052) | 07H1696 |
| DASD ID Cable | |
| (for Option No. 71G9743) | 06H8664 |
| 4x Non-Hot Swap SCSI Cable - Optional | 06H8647 |
| SCSI-2 F/W Repeater Card (Option) | |
| (OPT P/N 94G7585) | 07L8624 |
| SCSI-2 F/W Enhanced Repeater Card | 93H6409 |
| Card Bracket Kit | |
| (for 07L8624, 93H6409) | 75H9840 |
