IBM-AUSTRIA - PC-HW-Support    30 Aug 1999

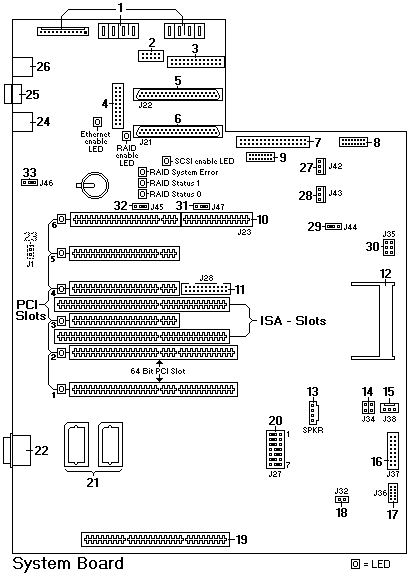

PC Server 330 (Type 8640-Pxx) System/Processor Board

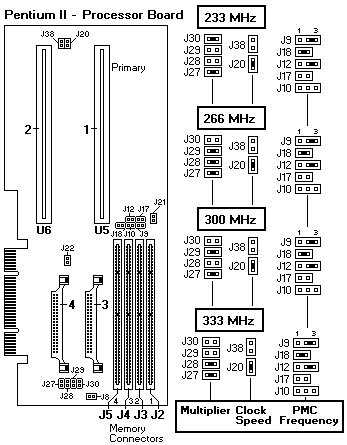

Pentium® II (Klamath) - Processor-Card Type B - Jumper Settings

See > Processor Card Jumper J9

See Part-Two (fullscreen)
