IBM S/390 Microprocessor Complex
IBM S/390 Microprocessor Complex (Type 8641)

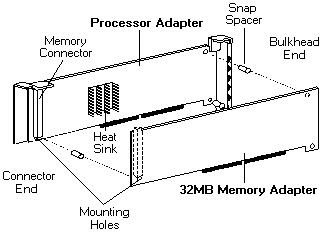

The IBM S/390 Microprecessor Complex consits of a P/390 Processor
Card and an optional P/390 32 MB, or P/390 96 MB Memory Card attached to
the P/390 Processor Card.
When the processor card is installed with a memory card attached, the
voltages for the memory card are provided by the system-board slot adjacent
to the slot adjacent to the slot occupied by the processor card.
Together the P/390 Processor Card and a P/390 32 MB, or P/390 96 MB Memory Card occupy
two adjacent slots on the system board.
