Diskette Drive and CD-ROM Drive (TP 380Z - 2635)

Diskette Drive and CD-ROM Drive

NOTE: When replacing a screw, be sure to tighten the pink screws and yellow ones tightly

Diskette Drive

Step Size (Quantity) Torque 2 M2.6 x 4mm, Yellow (1) 4 kgcm

Step	Size (Quantity)	Torque
2	M2.6 x 4mm, Yellow (1)	4 kgcm

NOTE: Make sure you use the correct screw, and tighten all screws firmly to the torque shown in the table, if you have a torque screwdriver. Never use a screw that you removed.
Use a new one. Make sure the screws are tightened firmly.

When reinstalling the plate cover, make sure that the blue bezel button comes out of the plate cover hole.

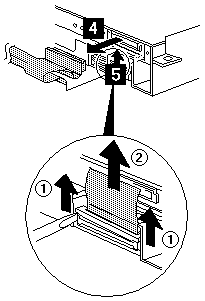

Step Size (Quantity) Torque 4 M2x1.7mm, special-head Blue (2) 1.5-1.8 kgcm

Step	Size (Quantity)	Torque
4	M2x1.7mm, special-head Blue (2)	1.5-1.8 kgcm

Step Size (Quantity) Torque 6 M2.6 x 2.8mm, pink (3) 4 kgcm

Step	Size (Quantity)	Torque
6	M2.6 x 2.8mm, pink (3)	4 kgcm

CD-ROM Drive

Step Size (Quantity) Torque 1 M2.6 x 1.7mm, special-head Blue (2) 1.5-1.8 kgcm 4 (a) M2 x 1.7mm, special-head Blue (2) (b) M2 x 2.4mm, special-head Yellow (2) 1.5-1.8 kgcm

Step	Size (Quantity)	Torque
1	M2.6 x 1.7mm, special-head Blue (2)	1.5-1.8 kgcm
4	(a) M2 x 1.7mm, special-head Blue (2) (b) M2 x 2.4mm, special-head Yellow (2)	1.5-1.8 kgcm
