| Step | Size (Quantity) | Color | Torque |
|---|---|---|---|
| 2 | M2.5 x 6 mm , Nylon (1) | Black | 4 kgcm |
| 3 | Hex head (2) | Silver | 4 kgcm |
NOTE: Make sure you use the correct screw and tighten the
screw to the torque specified. Do not use the screw that you have removed, use
a new screw.

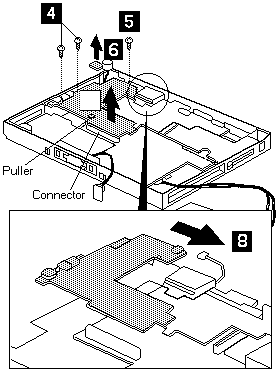

| Step | Size (Quantity) | Color | Torque |
|---|---|---|---|
| 4 | M2.5 x 3 mm , Nylon (2) | Black | 4 kgcm |
| 5 | M2.5 x 4 mm , Nylon (1) | Black | 4 kgcm |
NOTE: Make sure you use the correct screw and tighten the
screw to the torque specified. Do not use the screw that you have removed, use
a new screw.
When replacing:
Locate the microphone, spacer and cable as shown in the figure.
