Inside Assembly (2600-310/310D/310E/310ED)



Inside Assembly

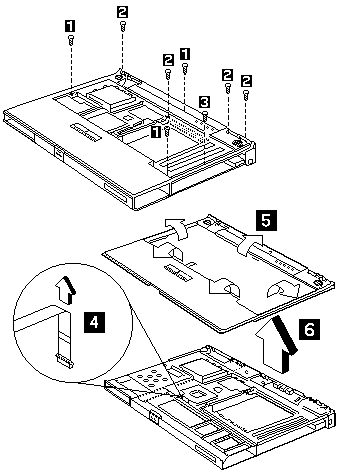

Upper Base



Step Size (Quantity) Head and Color Memo
1 M2.5x18L (3) Pan head, silver
2 M2.5x6L (4) Pan head, black w/ nylock paste
3 M2x4L (1) Flat head, black


NOTE: Be sure to use the correct screw when replacing.

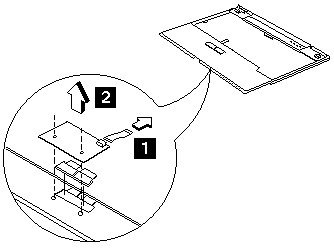

TrackPoint Board, TrackPoint Button and
TrackPoint Board FPC Cable



Step Size (Quantity) Head and Color Memo
1 M2x4L (2) Pan head, silver


NOTE: Be sure to use the correct screw when replacing.

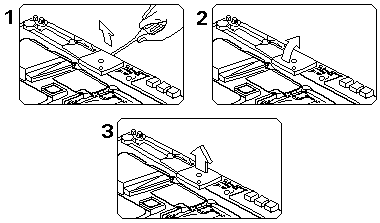

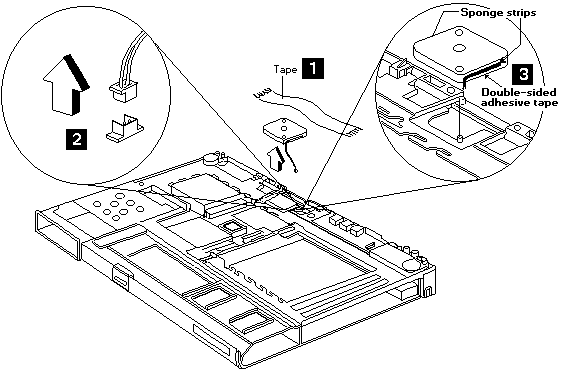

Fan

  When removing the fan, do not tilt the fan too much to any one side The post that steadies the fan is delicate and will breakif too much pressure is exerted on it.
Take care in removing the fan, it should be done as vertically as possible.



NOTE: The tape used to secure the fan is not ordinary tape, but a special tape with safety characteristics.
This tape is part of the Mylar FRU P/N 05K4881 (12J0514).

If you need to replace the fan, besides the new fan, you need to get from the Mylar FRU the following:
the tape mentioned above, two sponge strips to stick on the sides of the fan, and a double-sided
adhesive tape to attach on the underside of the fan. Refer to the old fan.

  The fan cable should follow the path shown in the figure. If the fan cable gets pressed or weighed down and is damaged, the chassis might get short-circuited as a result.




  When removing the fan, do not tilt the fan too much to any one side. The post that steadies the fan is delicate and will breakif too much pressure is exerted on it.
Take care in removing the fan, it should be done as vertically as possible.

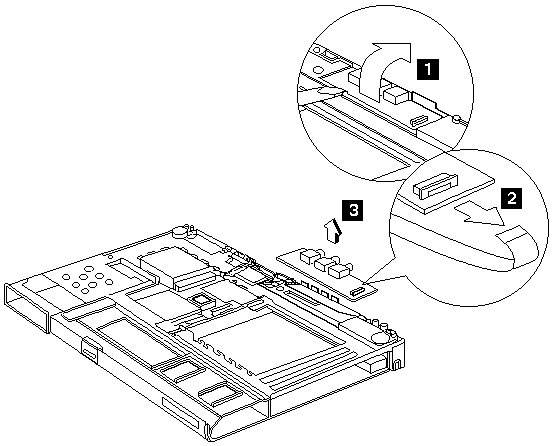

Audio Connector Board




  Take care in removing the audio connection board (see figure) to avoid damaging the LEDs.

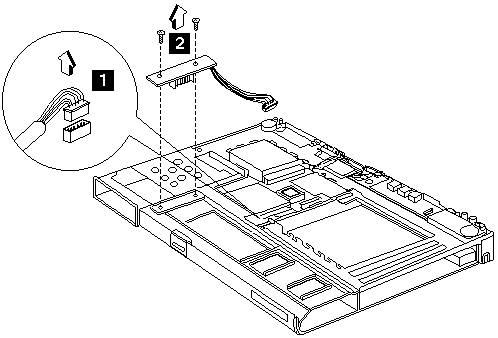

Battery Connector Board



Step Size (Quantity) Head and Color Memo
2 M2.5x6L (2) Pan head, black w/ nylock paste


NOTE: Be sure to use the correct screw when replacing.

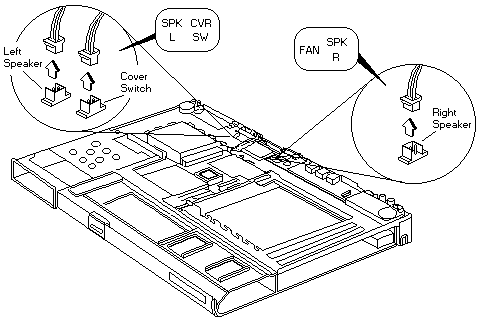

Speaker and Cover Switch Cables

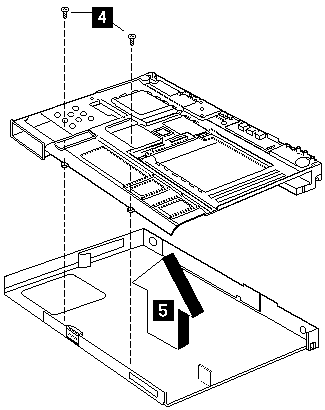

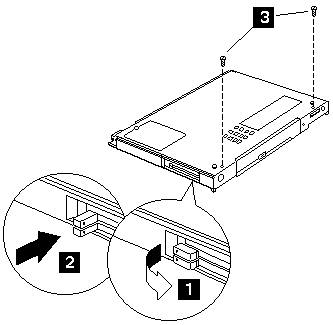

Lower Base




  If you want to remove the chassis with the system board out of the lower base, the PCMCIA slot buttons should be upriht then pushed in (1 2) before you begin this removal procedure.



Step Size (Quantity) Head and Color Memo
3 M2.5x6L (2) Pan head, black w/ nylock paste
4 M2x4L (2) Pan head, silver


NOTE: Be sure to use the correct screw when replacing.

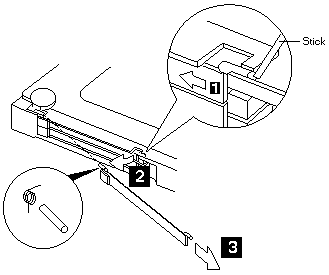

PCMCIA Door and PCMCIA Door Spring

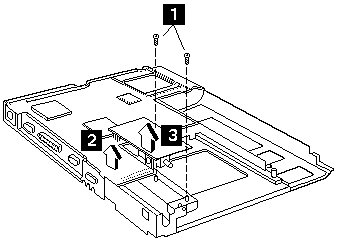

Charger Board



Step Size (Quantity) Head and Color Memo
1 M2x4L (2) Pan head, silver


NOTE: Be sure to use the correct screw when replacing.


System Board

  When you have replaced the system board, follow the instructions in Setting Thermal Sensor Threshold



Step Size (Quantity) Head and Color Memo
1 M2x4L (2) Pan head, silver
2 M2x4L (2) Pan head, black w/ nylock paste
3 M2x4L (2) Pan head, silver w/ brackets
4 M2x4L (1) Pan head, silver


NOTE: Be sure to use the correct screw when replacing.

  The backup battery is a lithium battery and can cause a fire, explosion, or severe burns. Do not charge it, heat is higher than 100°C (212°F), incinerate it, or expose its cell contents to water. Dispose of the battery as required by local ordinances or regulations. Use of an incorrect battery can result in ignition or explosion of the battery. Replacement batteries can be ordered from IBM or IBM authorized dealers.



Keyboard Connector Board



PCMCIA Slot Assembly



Step Size (Quantity) Head and Color Memo
1 M2x14L (2) Pan head, silver w/ brackets


NOTE: Be sure to use the correct screw when replacing.
