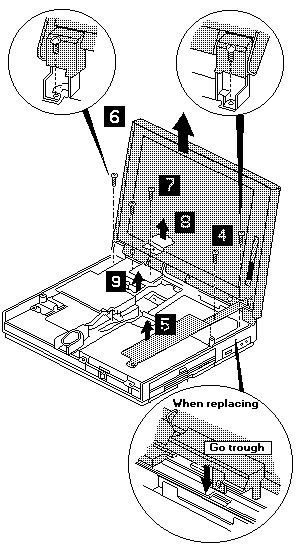

| Step | Location (Quantity) | Length |
|---|---|---|
| 2 | Base Cover (5) | M2.5 x 6mm |
| 4 | Bracket (1) | M2.5 x 6mm |
| 6 | Hinges, LCD Unit (3) | M2.5 x 6mm |
| 7 | LCD Cable (1) | M2.5 x 6mm |
NOTE: When replacing, make sure you use the correct screw.

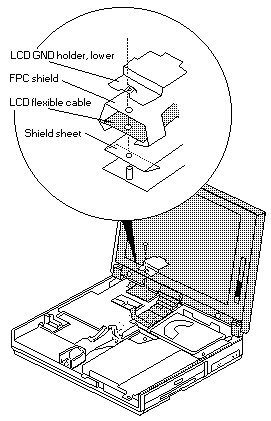

When replacing use the following picture for reference.
