1020 DIMM Card / Backup Battery (2635-380/385)



1020 DIMM Card / Backup Battery

  See Lithium Battery Safety

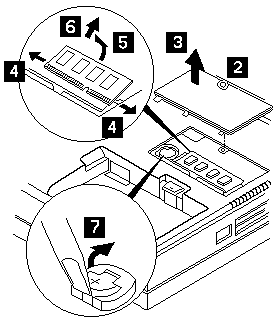

  1.  Turn the computer upside down.

2 3 4 5 6 DIMM
2 3 7 Backup battery





When replacing

Make sure the plus side is on top when replacing the backup battery.

Step Location (Quantity) Length
2 DIMM cover (1) -

NOTE: Only loosen the screw in step 2
