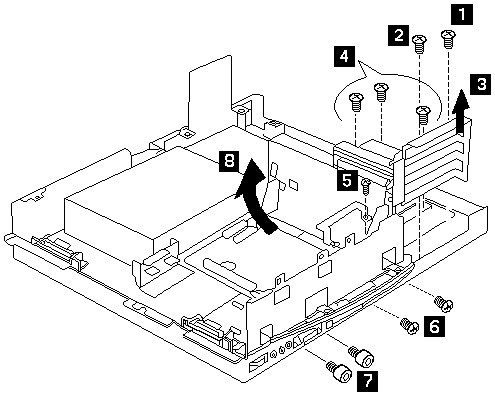

| SelectaDock II | SelectaDock III | |||
|---|---|---|---|---|
| Step | Length (Quantity) | Memo | Length (Quantity) | Memo |
| 1 | M 2.6 x 5 mm (1) | - | M 3 x 6 mm (2) | - |
| 2 | M 2.6 x 3 mm (1) | - | M 3 x 6 mm (2) | - |
| 4 | M 2.6 x 5 mm (3) | Self-tapping screw | M 3 x 8 mm (3) | Self-tapping screw |
| 5 | M 1.5 x 6 mm (1) | - | M 2 x 6 mm (1) | - |
| 6 | M 2.6 x 5 mm (2) | - | M 2.6 x 8 mm (2) | - |
| 7 | M 2 x 7 mm (2) | Hex head (5 mm) | M 3 x 8 mm (2) | Hex Head (5 mm) |
